On-Line Performance Parts Store - Suspension

UUC Adjustable Control Arms - $349 (FREE SHIPPING!)

The Ultimate Adjustable Rear Control Arms


Plated 4130 Chromoly Steel

CNC Machined Aluminum Ends

Quiet Bushings

All Hardware Included

Why use adjustable rear control arms?
With a lowered car (either for street or track use), the non-adjustable original arms cause unwanted negative camber - the tops of the rear tires angle in too much, causing uneven tire wear and unwanted effects on handling. The adjustable rear control arm corrects this problem and can be tuned for any lowering, whether a street car ro a full-on race car through a +1.0 to -3.0 range.

Co-developed with OE-supplier SPC Performance, the combination of OE engineering and UUC's enhancements make these arms truly "ultimate".

With so many alternate choices, why UUC?
UUC's custom-made proprietary design resolves many of the issues with other brands:

  • Aluminum center rods are known to bend and fail under extreme use or after extended use (build-up of strain/weakening). Failure of a suspension part that keeps the wheel in place can be quite dangerous. UUC's chromoly center rods are the strongest in the world, virtually unbreakable in this application.
  • The wrench-fixing point of UUC's chromoly arm will not "round off" like the fixing point of aluminum arms.
  • UUC's original-style bushing is silent, and does not have the squeaks and rattles associated with the use of heim joints or spherical bearings.
  • The combination of aluminum ends and chromoly steel center bar results in a reasonable weight, a balanced combination of mass and strength.
  • UUC's stress-relieved aluminum cleavis end is not only very strong, but is also much more precise in fitment than stamped-steel alternatives.
  • Construction details:

  • Center bar: plated 4130 chromoly steel.
  • End components: CNC-machined anodized aluminum for lightness, stress-relieved for strength and durability.
  • Inboard bushing: high-durometer squeak-free rubber.
  • All hardware included.
  • Fits 1992-2005 318, 323, 325, 328, M3 (E36, E46) and 2003+ Z4 (does not fit 318Ti & Z3)

    Price >

    UUC Strut Barbarian - $400 (FREE SHIPPING!)


    StrutBarbarian

    Several features make the UUC Motorwerks Barbarian strut tower brace unique:
    1. Magnesium alloy construction (grade 12.9 stainless steel bolts) for very important reasons:
     a) Strength: the StrutBarbarian bar section is tubular for strength comparable or greater than solid bars.
     b) Light weight: the entire StrutBarbarian weighs approximately 2lbs (compare to other bars upwards of 10lbs.+)

    2. The Barbarian uses no pivots or heim joints and is therefore a truly functional structural device. To resist bending and torsion that reduce effectiveness, pivots and heim joints are avoided.

    3. Open top design allows access to adjustable suspension components.

    4. Precision construction. In order to accurately produce a bar with very tight tolerances, UUC does not weld any portion of the StrutBarbarian assembly. Welding can compromise the structural integrity of the material and its metallurgical characteristics as well as introduce warping from the heat. By using computer numerically controlled (CNC) manufacturing techniques, UUC assured that the bar fits perfectly every time.

    5. Quality materials. The entire assembly is constructed of magnesium alloy with stainless steel hardware for continuous high-performance service without fear of surface or material degradation over time. Magnesium parts are powder coated for appearance.

    You are assured that this is the best possible product at any price, at any cost. By using massive overkill engineering, UUC has ensured that the StrutBarbarian left nothing to compromise.

    Silver E36 StrutBarbarian - In Stock

    Model -
    Price >

    H&R OE Sport Springs
    H&R OE Sport Springs lower your vehicle subtly, giving it a slightly more aggressive stance without radically changing its appearance. Designed to enhance front-to-rear balance and street handling performance, OE Sport Springs take the "wallow" out of the stock suspension, yielding a more taut feel and improved ride characteristics. All this while retaining the ride comfort you're accustomed to.
    E36 32X and M3 Fitments - In Stock - ships in 1 - 2 business days

    Model -
    Price >

    * The price is higher for the '96+ M3 fitment because H&R requires larger '95 M3 upper spring plates to be used. H&R expects you to buy your own, but at understeer.com they are included to save you from having to make a trip to your local BMW dealership. If comparing prices, keep this in mind.

    H&R Sport Springs
    The most popular spring in H&R's line-up, Sport Springs will lower your vehicle an average of 1.5 - 2 inches (depending upon the model of your vehicle) for a lower center of gravity, improved handling and a more aggressive appearance. Sport springs feature a spring rate that is firmer than that of the OE Sport spring, but is still comfortable enough for daily use. Sport springs are an excellent choice for street and occasional track use.
    E36 32X, E36 318i and E36 M3 Fitments - In Stock - ships in 1 - 2 business days

    Model -
    Price >

    H&R Race Springs
    For those that want the ultimate in handling and an over-the-top, highly aggressive look-H&R Race Springs are the perfect solution. H&R Race Springs will lower your vehicle approximately 1.75-2.5 inches (depending on the make and model of your vehicle) and should be matched with high-quality, sport-tuned shock absorbers. Race springs are best suited to racing and occasional street use.
    '96+ E36 M3 and E36 32X Fitments - In Stock - ships in 1 - 2 business days

    Model -
    Price >

    Eibach Pro-Kit Springs
    The Eibach Pro-Kit lowering spring set improves your vehicle's looks and performance. Pro-Kit springs lower the vehicle's center of gravity, reducing body roll in the turns, dive under braking, squat during acceleration and give the car a more solid secure feel at all times. Pro-Kit Springs also minimize the ugly fender gap that makes a car look "lifted." Eibach Pro-Kit Springs..."The look that performs."

    Model -
    Price >

    Eibach Sportline Springs
    Sportline Springs are the latest development from Eibach, the leader in performance suspension components. Sportline Springs will give your car a low, race-replica look. The goal? A radical reduction in wheel well gap and improved handling. Eibach Pro-Kit Springs usually lower vehicles 1.00" -1.25" to provide the ultimate balance of cornering and ride comfort. Sportline Springs provide an increased drop typically 1.50" to 2.00".

    Model -
    Price >

    UUC Tuned Spring Sets



    Details of the UUC Tuned Spring Sets
    There are lots of reasons to install performance springs... better handling, lowered ride height, more chassis control.

    But not all springs are the same.
    When choosing a spring set, you need to ask a few very important questions:

    • Do they work with your original struts or do other struts need to be purchased?
    • How will ride quality be affected?
    • Are the springs designed for real street use or strictly "race only"?
    • How good are the materials used to make the springs?

    Let's answer these questions and see how the UUC Tuned Spring Set measures up:

    • The UUC Tuned Spring set is designed to work with your stock struts.  This saves you a bunch of money on "special" struts which can cost up to $700 all by themselves.
    • Ride quality with the UUC Tuned Spring Set remains very comfortable, not harsh at all.  This is due to the progressive rate design that is softer in the normal range of compression in street driving, yet firms up more and more as it is compressed further during "sporty" driving.
    • UUC springs are designed for the street, but are track-capable.  Other "race springs" may be too harsh for street use and too short for other suspension components, which could compromise the lifespan of those parts.  UUC springs work perfectly with all other stock parts.
    • UUC's spring sets start as the highest grade chrome silicone steel wire.  Each and every UUC Motorwerks Tuned Springs have been both TUV approved and produced under the ISO9002 certification.  All UUC springs are cold wound on the industries best CNC spring coilers (Wafio).  The springs are then tempered to 1652F,  shot-peened and then block-set for long lasting performance.  Each set is then powdercoated for corrosion resistance.  This process is done so that the spring set will last for years to come.
    Year BMW Model part number  Approx.
    Front
    Lowering
    Approx.
    Rear
    Lowering
    1999-2004 E46 323, 328, 325, 330 Sedan or Coupe TSS-E462 (v.2) 1.6" 1.2"
    2000-2004 E46 323, 325 Wagon or Convertible TSS-E463 (v.2) 1.6" 1.2"
    2001-2004 E46 M3 TSS-E46M3 1.6" 1.4"
    6/1992-1999 E36 323/325/328 TSS-E36 1.6" 1.4"
    1994-1999 E36 M3 TSS-E36M3 1.6" 1.4"
    1995-2001 E38 7-series TSS-E38 1.5" 1.4"


    Model -
    Price >

    Koni Sport Shocks

    KONI Sport shock absorbers (yellow) were developed for sporting drivers by focusing on exceptional road holding and handling properties, combined with an acceptable level of comfort. Adjustable to suit your driving style.

    Model -
    Price >

    H&R Cup Kit - $720

    With more than 20 years experience building automotive suspension components, H&R's Cup Kits are an ideal solution for those that want aggressive looks and impressive handling, but don't want the harshness of a less advanced "lowering spring" kit.

    Rather than simply try to match a spring and shock together for the best performance, H&R's Cup Kits are engineered to work with each other from the beginning, and with a specific application in mind. This takes the guess work out of your spring/shock selection, and provides you with an application specific, precisely calibrated spring and shock set designed to deliver improved handling, uncompromised ride comfort and sleek styling in one precision engineered package.

    Model -
    Price >

    H&R Coil Over
    Engineered for street and occasional track use, H&R Coil-Overs feature a fully-threaded shock body (not an imitation sleeve-over) that allows you to precisely dial in height adjustment to achieve optimum weight transfer, or simply get the aggressive look you've been looking for. Featuring H&R's exclusive dynamic damper technology, each shock is engineered to work in harmony with a progressive-rate spring, together creating a finely-tuned suspension system.

    Model -
    Price >

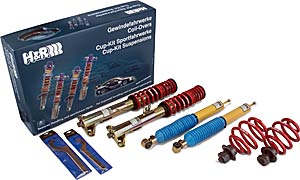

    H&R PCS Coil Over - $1500
    Coil over suspension is the ultimate expression of high-performance handling, and now H&R Special Springs takes this technology to the next level with its new PCS Coil Overs. Like H&R's original Coil-Overs, PCS Coil-Overs are engineered for street use, but have a number of new features designed for the enthusiast who desires a manual shock dampening feature.

    In addition to state-of-the-art inverted damper technology and adjustable ride height, PCS Coil Overs feature an external adjustment knob that allows the user to simultaneously adjust rebound and compression. Nose-diving under hard breaking is virtually eliminated, which effectively reduces braking distance. And unlike traditional twin-tube shock absorbers, H&R's mono-tube gas shock absorbers eliminate foaming of the damper oil, even under extreme conditions.

    Model -
    Price >

    UUC SwayBarbarian (Gen 2 / Free Shipping)

    The SwayBarbarian
    When setting out to design their SwayBarbarian, UUC looked at some important criteria which others had not addressed.  There is the issue of stiffness characteristics which were achieved, but to set the system apart from others, they have incorporated some unique features found only on the SwayBarbarian.

    Attention to Detail
    As an example of our attention to detail, the E36 M3 Sway Barbarians is a very unique set of bars.  The rear is an asymmetric shape, allowing for a fit unlike any other aftermarket sway bar.  Most aftermarket swaybars will usually wind up hitting the exhaust system under full droop situations (when the rear suspension is complete extended such as on a lift).  The Sway Barbarian has a unique bend to less this possibility.  Was this advanced engineering?  Was it rocket science?  Was it difficult to design?  The answer to all of these questions is no.  It's common sense.

    Superior Materials
    Whereas most BMW aftermarket bars are made from either 1020, 1026, 1040 or 1045 mild steel, the SwayBarbarian is made from 4130 chrome moly spring grade steel.  Whereas mild steel bars bend easily in the Vector CNC bending machines, 4130 is more difficult to do so.  Because of its "springy" nature, it wants to return back to its original shape requiring more work to get it into its final shape.  Chrome Moly is approximately twice the price of all forms of mild steel.

    UUC put their bars through this extensive process to insure that the final product will be the strongest, most durable bar on the market, and that it will be the most resistant to form alteration.  Currently, there are not other BMW aftermarket sway bars using this material or method of manufacture.  When cold forming, the tight radius of the bends are the most susceptible to weakening.  Whereas a mild steel bar may never fail in the lifetime of the car, UUC wanted to ensure that the SwayBarbarian's do not lose their "spring" or "effectiveness" over time.  UUC Motorwerks continues to produce and market products far above "suitable" standards.

    Adjustability
    The  SwayBarbarian uses a multi-hole system on the front and rear bars which allows for fine tuning of the bar for whatever desired effect, without sacrificing body roll.

    The E36 M3 and E46 SwayBarbarians come complete with adjustable rear sway bar links to replace the factory rubber links.  Instead of using non-adjustable, rubber-bushing factory links and modifying them for use with adjustable swaybars, UUC includes these custom made, ultra-high quality end links.  They are more expensive than modifying factory links, but they feel that the benefit of being able to fine tune the fit justifies it's cost.

    These rear sway bar links are complete with:

  • Urethane bushing end links with adjustable rods (optional Aurora bearing spherical ends)
  • 18-8 stainless steel jam nuts and studs
  • Grade 12.9, blue coated M10 hex head cap screws
  • 18-8 stainless steel washers
  • Grade 8, M10 locknuts
  • Custom spacers for mounting into stock location (not pictured)
  • Sizes
    The UUC SwayBarbarian set is specifically sized to deliver "neutral" handling.  Note that this is in direct comparison to larger bars that are available which will negatively effect handling by enhancing undesirable understeer characteristics.

    Model Front
    Sway Bar
    Rear
    Sway Bar
    '95-'99 E36 M3 1.0" (27mm) 0.9375" (23.8mm)
    '99-'03 E46
    330, 328, 325, 323

    (not available for Xi yet)
    1.0" (25.4mm) 0.9375" (23.8mm)
    '01-'03 E46 M3 1.207" (30.67mm) 0.97" (24.73mm)

    Powdercoated Finish
    After the bars are CNC mandrel bent and the ends are forged and punched, a silver powdercoat is applied for a smooth, long lasting finish in a similar process to how factory bars are coated.  This smooth finish allows the bars, when properly installed with polyurethane bushings and grease, for long term performance with minimal maintenance.

    Polyurethane Bushings
    The SwayBarbarians include replacement polyurethane bushings which have a unique "rifle-drilled" center.  This allows for grease, when used during the installation, to remain in the groves of the bushing for long lasting, quiet results.  Be sure to use generous amounts of grease to ensure maximum performance from your SwayBarbarians!

    Tubular - Why Weight? (E46 M3 Specific)
    By selecting chrome moly as the material for their E46 M3 SwayBarbarian, UUC was also able to specify another important characteristics: tubular construction. By using a tubular material, the overall weight of the E46 M3 SwayBarbarian is reduced considerably compared to other aftermarket sway bars, as well as compared to even the stock bars. For the ultimate in sway bars, UUC uses seamless 4130 Chrome Moly in their E46 M3 tubular sway bars. Weight savings are substantial... for example, their front swaybar saves almost 10lbs compared to the original bars! When unsprung weight is the enemy, the Tubular SwayBarbarians is your weapon. Whereas most tubular bars as also made from mild steel, they prove to be weaker than solid sway bars. However, by using the higher grade stronger 4130 Chrome Moly material, you're assured that the tubular sway bars are just as strong as their solid counterparts.

    E36 fitments - In Stock - ships in 1 - 2 business days

    Model -
    End Links -
    Price >

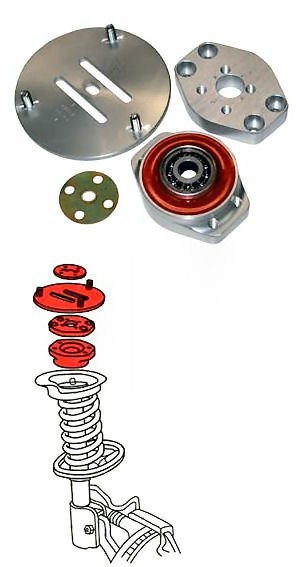

    UUC Camber Plates (Free Shipping)

    Camber/caster adjustment plates engineered utilizing a unique, multi-adjustable design, these adjustable camber plates are an ideal solution.

    - Works with any BMW-compatible front strut or coilover setup designed for original strut mount.
    -Replaces original upper strut mount. Does not change front ride height.
    -Crafted from aircraft quality aluminum, these precision machined adjusters feature OE style bearings and a bonded urethane insulator.
    -The OE style bearing provides proper rotational compliance for the strut shaft and will not loosen or rattle like spherical-bearing designs.
    -100% urethane isolation prevents noise or vibration transmitted to car's interior unlike solid metal plates. -Designed for both performance and racing applications.

    Model -
    Price >

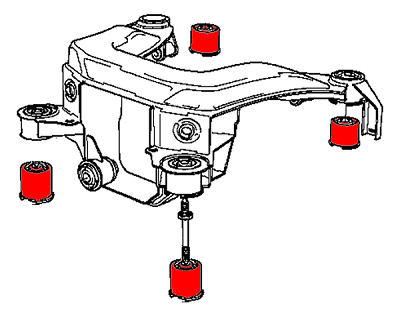

    UUC Subframe Bushing Set (Free Shipping)

    Subframe Mount - Racing version, priced as a complete set (4 point mounting). This part is intended for race cars only and is not recommended for street car use.

    To meet the demanding needs of racers, the new urethane subframe features a hybrid design sharing features of standard rubber mounts and solid metal racing mounts:
    -High-durometer urethane bushings are stiff enough to provide nearly flex-free support, yet still absorb some amount of vibration.
    -Virtually eliminates flex and bushing separation from subframe torque forces (especially with high-powered cars).
    -Hassle-free installation on any 1992-1999 E36 3-series or M3 (not for Ti models)
    -Steel hardware.
    -FITS: E36 1992-1999 M3, 328, 325, 323, 318

    Model -
    Price >

    UUC Urethane Rear Trailing Arm Bushing Set - $65

    RTAB complete set includes bushings for both rear control arms. RTABs are made from aerospace grade urethane and replace the original rubber bushings in the rear trailing arm. Eliminatres "bump steer" effect caused by original rubber bushings and results in better rear suspension control, which improves cornering speeds and power delivery. Suitable for street and race use, long-term tested successfully in both environments.

    Fits all E36 and E46 models (exc 318ti)

    In Stock - ships in 1 - 2 business days

    Price >

    UUC Front Control Arm Bushing Set (Free Shipping)


    The OE design of the FCAB is a simple rubber bushing. The part itself is subjected to torsional forces (twisting), lateral forces (side to side), and longitudinal forces (in and out). While this basic rubber design results in a quiet and comfortable ride, it also wears out quickly and has negative effects on performance/enthusiast driving. Specifically, the indicators of worn FCABs are steering wheel shimmy, looseness in the front end, irregular tire wear, sloppy steering response, and suspension geometry changes while cornering.

    UUC's all-new design incorporates many unique features designed to permanently address these problems while giving the functionality of a race-spec component that also maintains normal street car comfort and vibration absorption. Rotational bearing accommodates all torsional forces without affecting outer bushing material. Bushing material absorbs noise and vibration.

    Results will be felt immediately as improved steering response and feel, and a more "connected" feeling with the chassis.

    Model details:
    - E46 fitments (1999-2004 330, 328, 325, 323 and 2000-2006 M3 - not for Xi models) include the aluminum "lollipop" bracket. Important: all standard models (not including M3) must use the latest 66mm control arms/wishbones, BMW part # 31 12 6 774 819 (left) and 31 12 6 774 820 (right).
    - E36, E30, and Z3 fitments (1984-1999 M3, 328, 325, 323, 318, MZ3 and all Z3, including iX.) can be purchased complete with steel "lollipop" bracket or as the bushing itself for centered bushings allowing Original brackets to be re-used. Offset ('95 M3 sytle) bushings are only available with brackets included.

    Model -
    Price >

    E36 Suspension Install Kit - $175
    Why drive all over town looking for the parts you'll need to install new shocks and springs on your E36 3-series? This kit includes everything you need! The kit includes the following parts: E46 M3 rear shock mounts, M-Roadster rear shock mount reinforcement plates, rear shock mount gaskets, 3.2L M3 front shock tower reinforcement plates, front strut bearing gaskets, 10 lock nuts, zip ties to reinforce the bumpstops and a tube of Lock-tite Red.
    In Stock - ships in 1 - 2 business days

    Price >

    Early '92 325 Suspension Update Kit - $180

    Do you own a 1992 E36 325 built before 5/92? Are you tired of not being able to install the suspension that you want because it's only available for 6/92 and up 325's? This is the kit for you! With the parts included in this kit you'll be able to use any 6/92+ 325/323/328 suspension kit (Bilstein PSS, H&R Coilovers, etc). The kit includes all new original BMW parts: new strut mounts, strut mount sealing rings, flat washers, upper spring plates and upper spring plate pads.

    Note: If your 325 has a build date before 11/91 you'll also need a post 11/91 front sway bar and end links, unless you're going to use M3 style struts that have end link attachment points. You should be able to find a used 11/91+ sway bar easily from someone who has upgraded to aftermarket sway bars.

    In Stock - ships in 1 - 2 business days

    Price >

    X-Brace Hardware Kit - $10
      Set of four bolts and four nutserts needed to install an x-brace on a non-M E36 chassis. Genuine BMW parts.
    In Stock - ships in 1 - 2 business days
